Solar Double Swing Gate Opener | 1200KG Capacity | 3 Remotes | 24V DC Motors

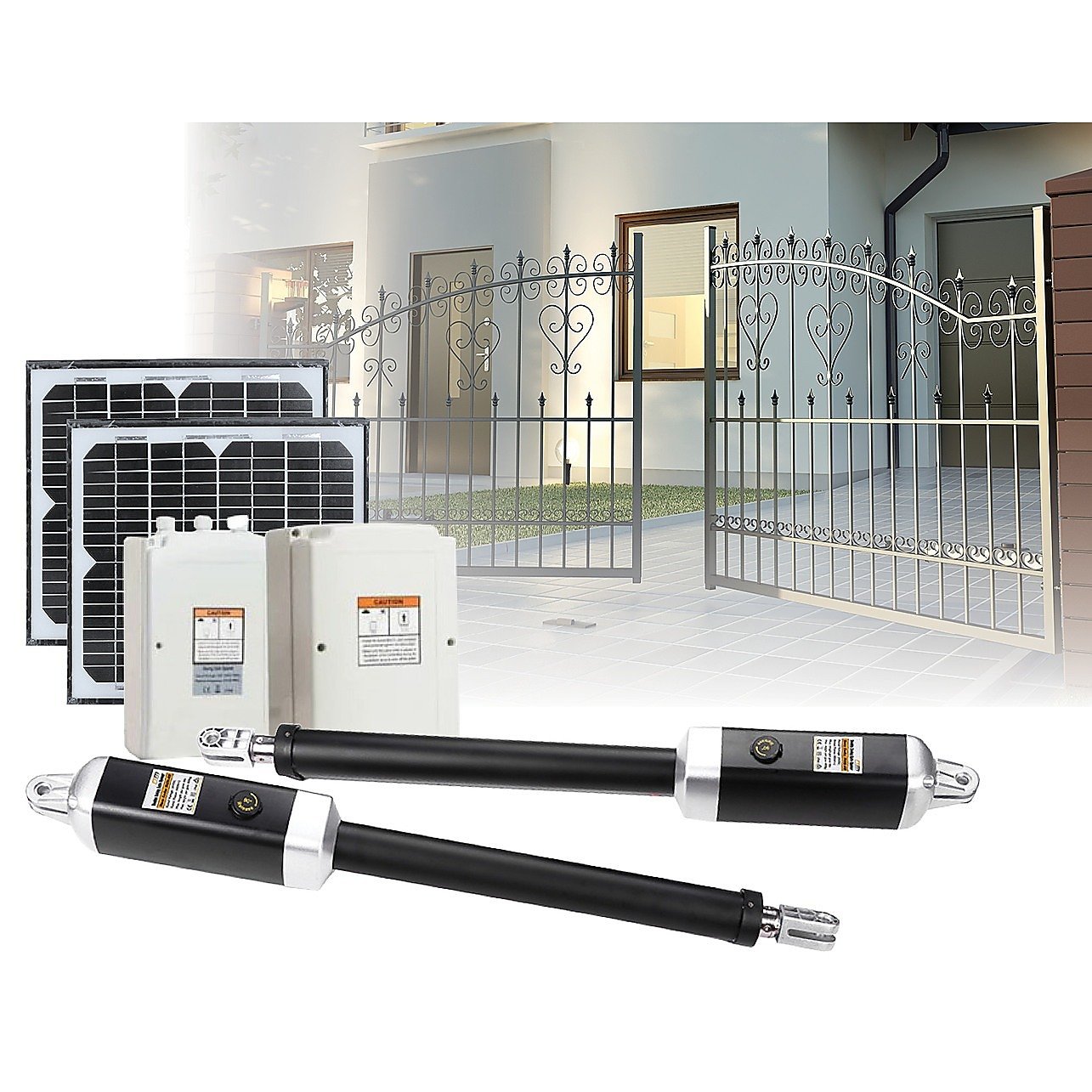

The Solar Double Swing Gate Opener automates dual swing gates up to 600KG and 6m wide each (1,200KG total) using two independent 24V DC actuator motors. A complete 20W solar backup kit (two 10W panels + two 12V/7.2AH batteries) keeps the system running during grid outages. CE and EMC approved, rated for -25°C to +55°C. Priced at $1,200. Gates not included.

• 1,200KG total gate capacity — 600KG per gate — two independent 24V DC actuator motors handle gates up to 6 meters wide each; suitable for heavy residential double gates and light commercial entry points where manual operation is impractical.
• 20W solar backup kit included — two 10W monocrystalline panels and two 12V/7.2AH batteries keep the system operational during grid outages; practical for rural properties and locations where mains power is unreliable.
• Soft open/close with auto-reverse safety — die-cast aluminium actuators ramp speed at start and stop to reduce mechanical stress; obstruction detection triggers automatic reversal with adjustable sensitivity to protect people, vehicles, and the gate structure.
• 0–110 degree opening angle — 90° in 8–12 seconds — full swing range accommodates wide driveways and varied gate configurations; actuator speed of 16mm/s provides controlled, smooth movement through the full arc.
• 3 remote controls included — 30-meter range — 4-button remotes allow open, close, stop, and auxiliary control without leaving your vehicle; additional remotes and a wireless keypad available separately.
• Auto-close timer — 0–99 seconds adjustable — gate closes automatically after a configurable delay; reduces the chance of the entry point being left open after passage; configured via the digital control board menu.
• Emergency manual release — keyed mechanical release on each actuator allows manual gate operation during complete power failure; backup access independent of electrical or solar status.
• IP44-rated digital control box — IP44 means the enclosure is protected against solid objects over 1mm and water splashing from any direction; suitable for outdoor mounting in rain-exposed locations; digital display for status monitoring and menu-driven settings.

Specifications

Optional extras: Additional remotes and wireless entry keypad available separately.
